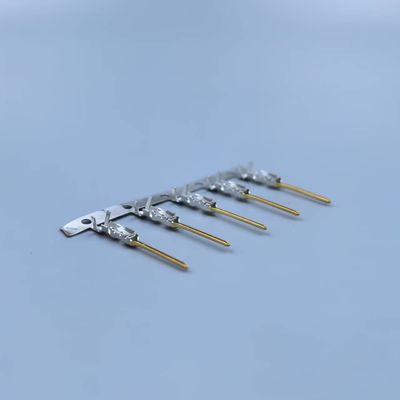

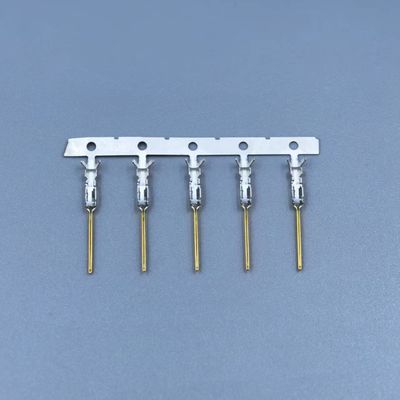

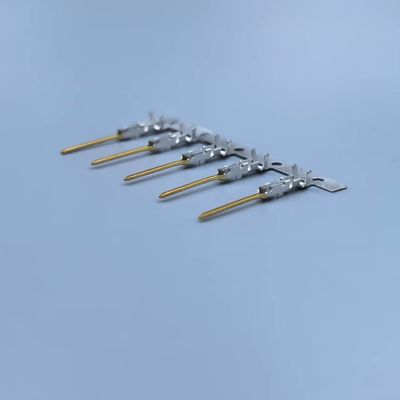

HDHR Heavy Duty Connector 23 16 36 F110 Male Contact Gold Flash AWG 28-22 L

Large Image : HDHR Heavy Duty Connector 23 16 36 F110 Male Contact Gold Flash AWG 28-22 L

Product Details:

Place of Origin:	China
Brand Name:	JIAHUA ELECTRONICS
Model Number:	F110-M-GF 28-22 L

Payment & Shipping Terms:

Price:	negotiable
Packaging Details:	carton box
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

Product Name:	Heavy Duty Connector HDHR 23/16/36 F110 Male Contact Gold Flash AWG 28-22 L	Part Number:	JH.FMC231636X-23
UL Approval:	UL1977	Product Qualification:	IEC60173
Apply Wire Gage:	F300(23POS):28-14 AWG F110(16POS):30-18AWG F110(36POS):30-22AWG	Application Contact:	FAF Contact – F300；F110
Dimension:	57mm*27mm	Operation Current:	F300(23POS):11A F110(16POS):3.7A F110(36POS):2.2A
Rated Voltage:	F300(23POS):400V F110(16POS):300V F110(36POS):32V	Insulation Resistance:	Not Less Than 400MΩ
Operating Temperature (Max) :	-10℃～40℃	LLCR:	Initial: F300(23POS):5 MΩ Max. F110(16POS)/F110(36POS):10 MΩ Max. Final: F300(23POS):5 MΩ Max. F110(16POS)/F110(36POS): 10 MΩ Max.
Dielectrical:	F300 (23 POS): 6 KV F110 (16 POS): 4 KV F110 (36 POS): 0.8 KV	Material:	PBT (Inserts)
Durability:	500 Cycles	Thermal Cycle:	Mated Connector -40℃/60min.,125℃/60min. Making This A Cycle, Repeat 100 Cycles.
Damp Heat:	Mated Connector, Min Ambient Temperature: 25±2℃ Max Ambient Temperature: 45±2℃ Duration Time:12h+12h,repeat 21 Cycles.
Highlight:	HDHR Heavy Duty Connector , F110 Heavy Duty Connector , AWG 28 heavy duty dc power connectors

Heavy Duty Connector HDHR 23/16/36 F110 Male Contact Gold Flash AWG 28-22 L

1 . Descriptions:

Heavy Duty Connectors (HDC) designed for demanding industrial environments, HDCs integrate power, signal, and data transmission in extreme conditions (vibration, dust, -40℃ to +125℃). Featuring IP65-IP69K-rated metal/composite housings. Customizable in materials (aluminum/engineered plastics), sealing types, and contact plating, these connectors meet international standards for rail, mining, and energy applications. Modular units optimize power/signal integrity with EMI shielding and thermal management.

2 . Specifications:

Name	Heavy Duty Connector HDHR 23/16/36 F110 Male Contact Gold Flash AWG 28-22 L
Position Number	75(23/16/36)
UL Approval	UL1977
Product Qualification	IEC60173
Apply wire gage	F300(23POS):28-14 AWG F110(16POS):30-18AWG F110(36POS):30-22AWG
Application Contact	FAF Contact – F300；F110
Dimension	57mm*27mm
Operation Current	F300(23POS):11A F110(16POS):3.7A F110(36POS):2.2A
Rated Voltage	F300(23POS):400V F110(16POS):300V F110(36POS):32V
LLCR	Initial: F300(23POS):5 mΩ Max. F110(16POS)/F110(36POS):10 mΩ Max. Final: F300(23POS):5 mΩ Max. F110(16POS)/F110(36POS): 10 mΩ Max.
Insulation Resistance	Not less than 400MΩ
Dielectrical	F300 (23 POS): 6 KV F110 (16 POS): 4 KV F110 (36 POS): 0.8 KV
Material	PBT (Inserts)
Durability	500 cycles
Operating Temperature	-10℃～40℃
Thermal Cycle	Mated connector -40℃/60min.,125℃/60min. Making this a cycle, repeat 100 cycles.
Damp Heat	Mated connector, Min ambient temperature: 25±2℃ Max ambient temperature: 45±2℃ Duration time:12h+12h,repeat 21 cycles.

3 . Related Materials Download :

HDHR 23_16_36 Inserts Product Data Sheet.pdf

4 . Advantage:

Enhanced Reliability

Robust industrial-grade stamped terminals ensure superior durability and consistent performance.

Effortless Processing

Mature and reliable stamped terminals significantly improve harness processing efficiency and yield.

Superior Protection

Designed to perform in the most demanding environments, ensuring outstanding durability.

360° Shielding

Provides stable and reliable data transmission with comprehensive electromagnetic interference protection.

Customizable Solutions

Tailored designs for seamless integration with robotic systems, ensuring optimal performance.

User-Friendly Design

Innovative latch structure simplifies plugging and unplugging, outperforming standard heavy-duty and M23 circular connectors.
