Detailed Product Description

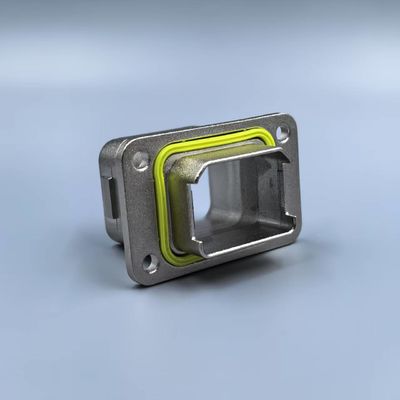

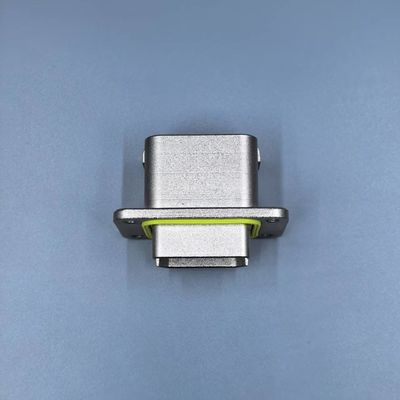

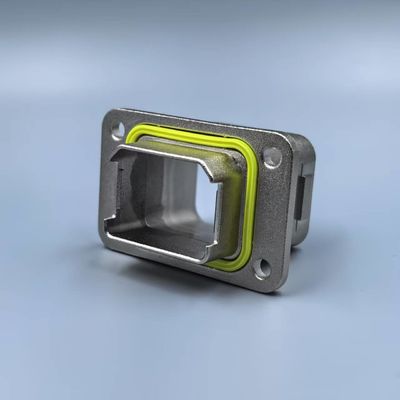

Product Name:	Heavy Duty Connector HDSRS 32Pin F2A Base Housing 2Lock	Part Number:	JH.FMC0000320
Position Number:	32POS	Product Qualification:	IEC60173
UL Approval:	UL1977	Apply Wire Gage:	AWG30(0.05mm:)--AWG22(0.37mm)
Application Contact:	F110 Contact	Operation Current:	AWG22:1.5A AWG24:1A AWG26:0.8A AWG 28:0.5A AWG 30:0.5A
Dimension:	37*21(mm)	Material:	PBT(inserts)
Mating Force:	58 8 N (6.0 Kgf) Max	Withdraw Force:	9.8 N(1.0 Kgf) Min
Rated Voltage:	125V AC	Insulation Resistance:	1000MΩ
LLCR:	Initial: Max.10 Ma Final: Max.20 MΩ	Dieleotrical:	1000V AC
Durability:	50cycles	Operating Temperature:	-30~105℃(ncluding Temperature Rise)
Thermal Cycle:	Mated Connector,-55℃/30min To 85℃/30min.100 Cycles	Damp Heat:	Mated Connector, 25~65℃,90~95 %R.H.10 Cycles Cold Shock -10℃
Highlight:	AWG22 heavy duty male female connector , AWG30 heavy duty male female connector , 2 Lock heavy duty terminal connector

Heavy Duty Connector HDSRS 32Pin F2A Base Housing 2Lock

1 . Descriptions:

Heavy Duty Connectors (HDC) designed for demanding industrial environments, HDCs integrate power, signal, and data transmission in extreme conditions (vibration, dust, -40℃ to +125℃). Featuring IP65-IP69K-rated metal/composite housings. Customizable in materials (aluminum/engineered plastics), sealing types, and contact plating, these connectors meet international standards for rail, mining, and energy applications. Modular units optimize power/signal integrity with EMI shielding and thermal management.

2 . Specifications:

Name	Heavy Duty Connector HDSRS 32Pin F2A Base Housing 2Lock
Position Number	32POS
UL Approval	UL1977
Product Qualification	IEC60173
Apply Wire Gage	AWG30(0.05mm²)——AWG22(0.37mm²)
Application Contact	F110 Contact
Dimension	37*21 (mm)
Operation Current	AWG22:1.5A AWG24:1A AWG26:0.8A AWG 28:0.5A AWG 30:0.5A
Rated Voltage	125V AC
LLCR	Initial: Max.10 mΩ Final: Max.20 mΩ
Insulation Resistance	1000MΩ
Mating Force	58.8 N (6.0 kgf) Max
Withdraw Force	9.8 N(1.0 kgf) Min
Dielectrical	1000V AC
Material	PBT(inserts)
Durability	50cycles
Operating Temperature	-30～105℃(Including temperature rise)
Thermal Cycle	Mated connector, -55℃/30min to 85℃/30min. 100 cycles
Damp Heat	Mated connector, 25～65℃, 90～95 % R. H. 10 cycles cold shock -10℃

3 . Related Materials Download :

4 . Advantage:

Enhanced Reliability

Robust design with industrial-grade stamped terminals ensures superior durability and consistent performance.

Streamlined Processing

Mature and reliable stamped terminal technology significantly improves harness processing efficiency and yield, optimizing production workflows.

Compact Design

Occupies 60% less space compared to traditional heavy-duty I/O interfaces, enabling more efficient system layouts.

Superior Protection

Engineered for harsh environments, delivering exceptional durability and performance under demanding conditions.
